Place of Origin : Chinese Mainland
Brand Name : Finboard
Certification : CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI
MOQ : 10 pcs
Price : Negotiable
Packaging Details : Box package+ bubble or as customized
Delivery Time : 10-15 days or confirm
Payment Terms : T/T, Western Union
Supply Ability : 5000pcs/month
Model Number : RFEPL 8050-A
Features : Industrial Explosion Proof Floodlight
Keywords : Hazardous location led lights
Light Source : LED
LED chips : High-quality LED chips
Power Consumption : 100W
Beam Angle : 120°
Operating Temperature : -40°C to 60°C
IP Rating : IP66
Voltage : AC100-270V
Color : Yellow or gray housing
Application : Chemical plants, refineries and manufacturing facilities
1. Introduction:
Our Yellow/Grey SMD 3030/2835 WF2 Waterproof IP65 Industrial Explosion Proof Floodlight is designed for harsh environments where safety and durability are critical. These EX proof lighting combine advanced LED technology with rugged construction to provide reliable lighting in hazardous locations.
2. Industrial applications:
Designed for industrial environments, these floodlights are ideal for use in areas where explosive gases or dusts may be present, such as chemical plants, refineries and manufacturing facilities. Hazardous location led light fixtures comply with strict safety standards to minimize the risk of fire.
3. Waterproof and dustproof design:
These explosion proof flood lights have an IP65 rating and are fully sealed to prevent water and dust from entering. This ensures reliable performance even in harsh outdoor conditions, making it suitable for both indoor and outdoor applications.
4. High-quality LED chips:
These industrial explosion proof lighting are equipped with SMD 3030 or 2835 LED chips, which provide excellent brightness and energy efficiency. Yellow or gray housing options increase visibility and blend perfectly with industrial environments.
5.Wide voltage range:
Compatible with AC85-265V and suitable for 50Hz and 60Hz power systems, these hazardous location led lights are versatile and can be used in different locations around the world without the need for additional adapters or converters.

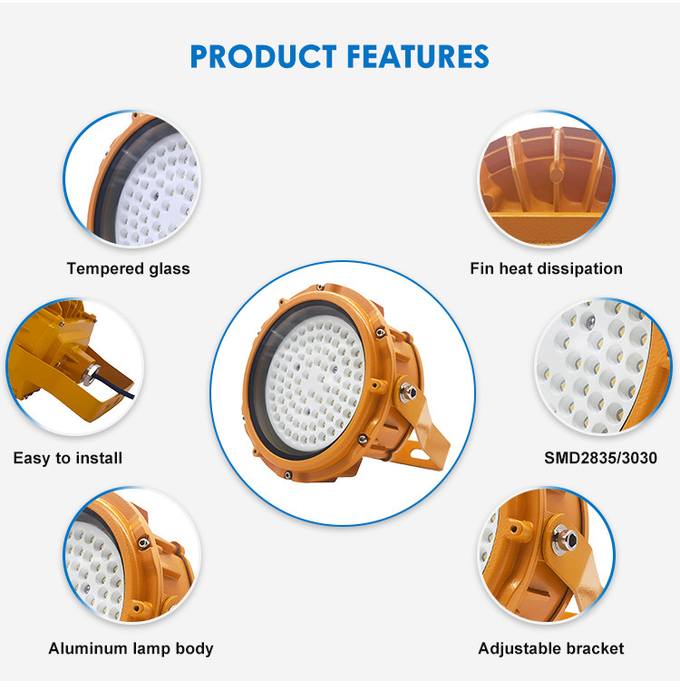

6. Features and Benefits:
Model | RFEPL 8050-A Glass shade explosion-proof LED light |
---|---|
Product name | Explosion Proof LED Light |
Executive Standard | GB3836 (equivalent to IEC60079, EN series standards)/GB12476 (equivalent to IEC61241, EN series standards) |
Explosion-Proof Mark | Exde IICT6 Gb/Exde IIBT6 Gb/Ex tD A21 IP65 T80℃ |
Color | Yellow/ grey |
Material | Die cast aluminum+glass |
Led | SMD 3030/2835 |
Light Efficiency | 100-120lm/w |
Rated Voltage | AC220V |
Frequency Range | 50Hz 60Hz |
Power Factor | ≥0.95 |
Power Efficiency | ≥0.88 |
Color Rendering Index | ≥80 |
Beam angle | 120° |
Electromagnetic Compatibility Standards | EN61000-3-2,TUV EN61347-1,EN61347-2-13 |
Explosion-proof signs | Exde ⅡC T6 Gb/Ex tD A21 IP65 T80℃ |
Degree Of Protection | IP65 |
Anti-Corrosion Grade | WF2 |
Inlet Thread | G3/4* |
Cable Specifications | Φ7-Φ12mm |
![]() |

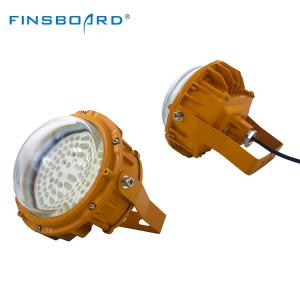

Waterproof IP65 Industrial Explosion Proof Lighting Fixtures Flood Light AC85-265V/ 50Hz 60Hz Images |
